residual current device,
differential switch circuit breaker

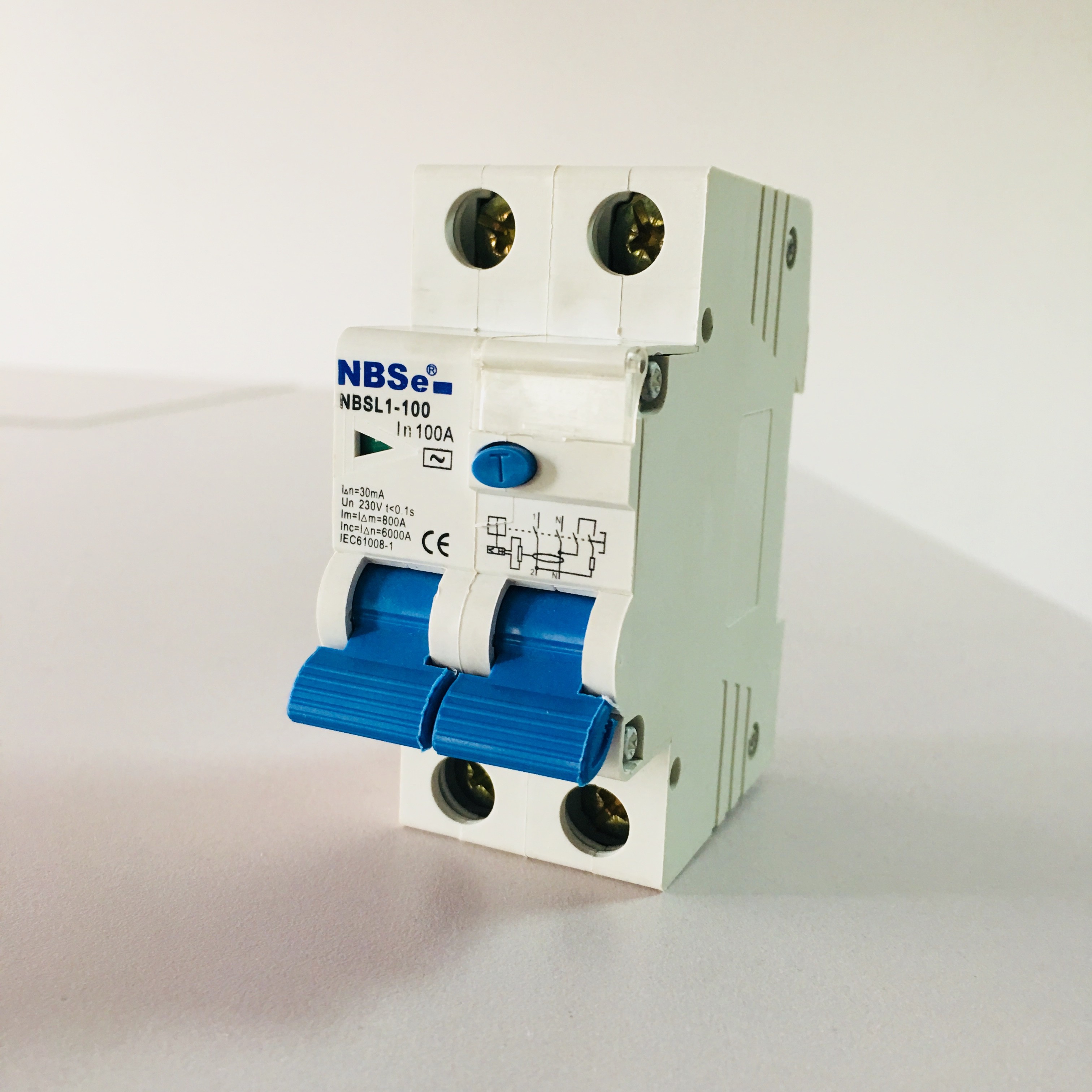

nbsl1-100-6ka-residual-current-circuit-breaker_.pd...NBSe NBSL1-100 Series 2P 100A Residual Current Circuit Breaker,rcd protected circuits
NBSL1-100 series residual current circuit breakers are applied to the lines with AC 50/60Hz,rated voltage of230V(1P+N) or 400V(3P+N),and rated current of 100A.In case of electric shock or electric leakage current exceeds the specified value, the residual current circuit breaker can switch off the fault circuit in a very short time, protecting the safety of person and electric equipment.
Can be used in the industrial, commercial, high-rise buildings, civil residences and other places.
2. TECHNICAL PARAMETER
|Rated Operating voltage(Ue)||230V(1P+N)/400V(3P+N)|
|Characteristic||A type, AC type, S type|
|Rated Insulation voltage(Ui)||500V|
|Rated residual current (IΔn)||10,30,100,300mA|
|Rated residual switching on and||800A|
|Rated residual short-circuit current||6000A|
|Rated short-circuit current limit(Inc)||6000A|
|Rated switching on and breaking capaity(Im)||800A|
|Maximun breaking time(IΔm)||0.3s|
|Rated impulse withstand voltage(Uimp)||6kV|
|Mechanical life(times)||＞10,000 times|
|Comply with Standard||IEC 61008|
|Certificate||CE, CB, RoHS,WEEE|
|Humidity||40℃ hum idit y no t e x c eed 50% 20℃ hum idit y not e x c ee d 90%|
|(Condensation on the product due to changes in humidity has been considered)|
|Working Temperature||-5℃~+40℃ and its average over aperiod of 24h does not exceed|
|Magnetic field||No more than 5 times the geomagnetic field|
|Mounting and Wiring|
|Shock and vibration||Should be installed in the case of no obvious impact vibration|
|Terminal connection types||type cable,type U bus, TH 35mm Din-rail|
|Wiring terminal connection conductor||1.5～25 mm²|
|Wiring terminal copper size||25 mm²|
|Installation mode||UsingTH35-7.5 profile installation, the title of installation face and vertical face is not greater than5°|
|Wiring incoming mode||upper and lower incoming is possible for ELM type, only upper incoming for ELE type|
3. OPERATION PRINCIPLE FIG.
4. DIMENSION DIAGRAM
5. WORKING PRINCIPLE
