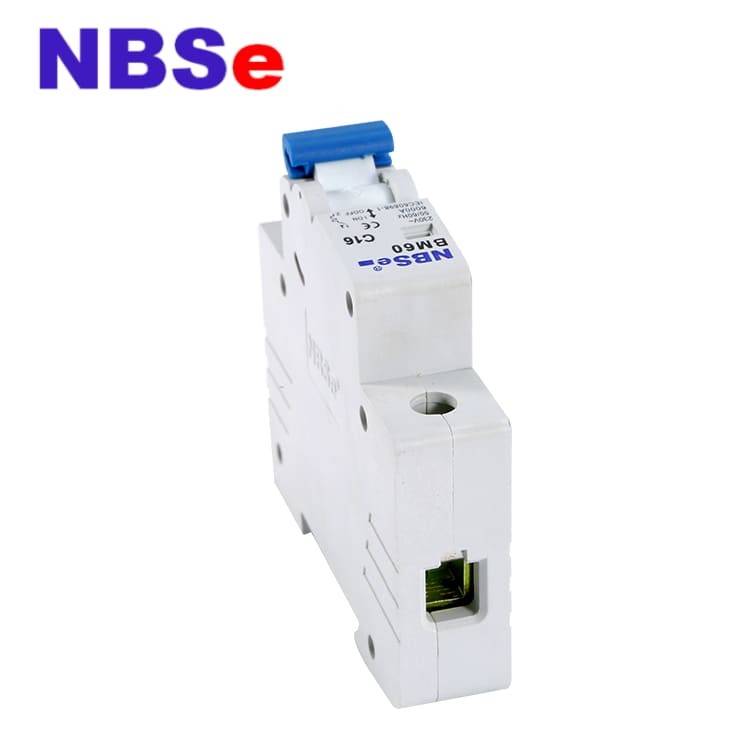

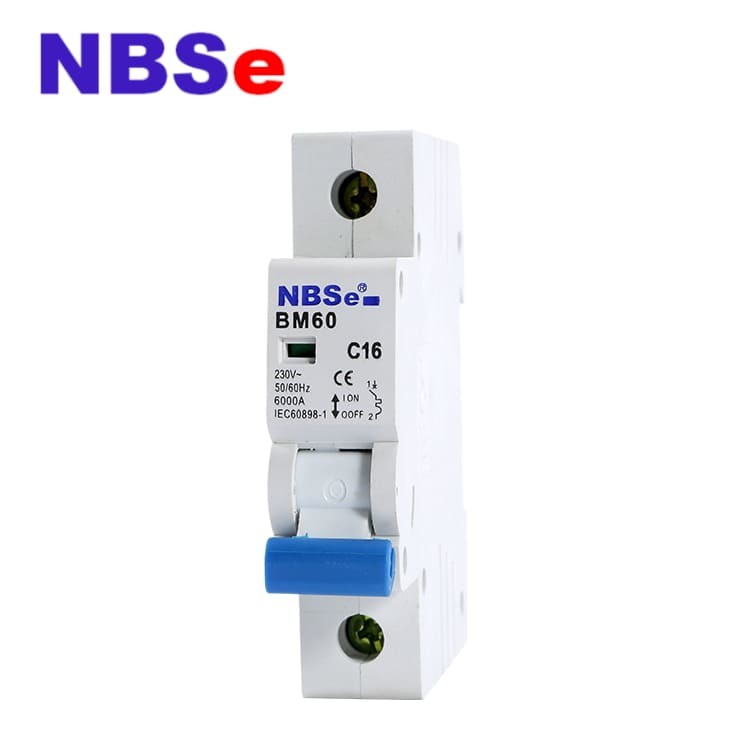

IEC60898-1 Non Frequent On Off Switch 415V 4p Type C Circuit Breaker

Basic Information
Place of Origin: CHINA
Brand Name: NBSe/OEM
Certification: CE,CCC
Model Number: BM60
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 240pcs/ctn
Delivery Time: 10-20days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 400,000pcs per month
Detail Information
Poles: 1P,2P,3P,4P Rated Voltage: 220V/415V
Breaking Capacity: 6KA Ampere: 1A-63A
Rated Frequency: 50/60Hz Standard: IEC/EN60898
Type: C Type, (5-10)In Product Name: Mini Circuit Breaker
Material: Fire-proof Shell, Copper,silver Point Application: Circuit-breaking,Homes,buildings,industrial
High Light:

4p type c circuit breaker

,

415V 4 pole circuit breaker

,

415V type c circuit breaker


Product Description

220V/415V 1P-4P Type C Breaker Micro Circuit Breaker​



Application

Miniature circuit breaker(MCB) is mainly used for lighting for building, protection against overload, short circuit

under AC230V/415V, rated current from 1A to 63A. It also can be used for non-frequent on and off switch operation

under normal circumstance.

Feature:

1. Advanced structure, 2. Reliable performance, 3. High breaking capacity,
4. Small and beautiful appearance.
5. Complication with international Standards IEC60898-1.
6.Maximum connecting ability of 25mm2, wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger



Standard   IEC60898
Number of poles   1P,2P,3P,4P
Rated current(In)   6,10,16,20,25,32,40,50,63
Rated voltage(Un)   AC240/415V
Rated frequency   50/60Hz
Tripping curve   B,C,D
Release action characteristics Time delay 1.13In>1h Non-trip
1.45In<1h trip
2.55In 1s~60S trip
Instantaneous(Curve C) 5In >0.1s Non-trip
10In<0.1s trip
Magnetic releases operate   B curve:between 3 and 5In
C curve :between 5 and 10In
D curve: between 10 and 15In
Ratedbreaking capacit(Lcn)   6000A
Endurance   >2500
Circumstance temperature   -5~+40
Electrical life   >6000times
Mechanical life   20000 times
Tropical ration   Treatmen 2(RH95%,at 55°C)
Protection degree   IP20



IEC60898-1 Non Frequent On Off Switch 415V 4p Type C Circuit Breaker 0



Packing Detail

1. Product Net weight: 100g/pole

2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton .

3. N.W: 23KG/carton

4. G.W:24KG/carton

5. Packing Measurement: inner box 22.5×9×8 cm, Carton 45×23.5×33.5 cm ( ie 0.036 cbm)

6. 20 foot container (26 cbm): 19,2000 pole ,800 cartons

7. 40 foot container (54 cbm): 38,4000 pole, 1600 cartons
