DP PVC Plastic Base 50/60Hz Residual Current Circuit Breaker

Basic Information
Place of Origin: CHINA
Brand Name: NBSE/OEM
Certification: CE,CB,
Model Number: BF62
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Export Carton
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000pcs per month
Detail Information
Type: Residual Current, Electronic,electromagnetic Poles Number: 2P
Rated Frequency: 50/60Hz Rated Voltage: 240V
Rated Current: 6A-63A Leakage Action Current: 30mA,100mA,300mA
Standard: IEC61008-1 Warranty: 2 YEARS
Breaking Capability: 6KA
High Light:

60Hz residual current device

,

DP residual current breaker


Product Description

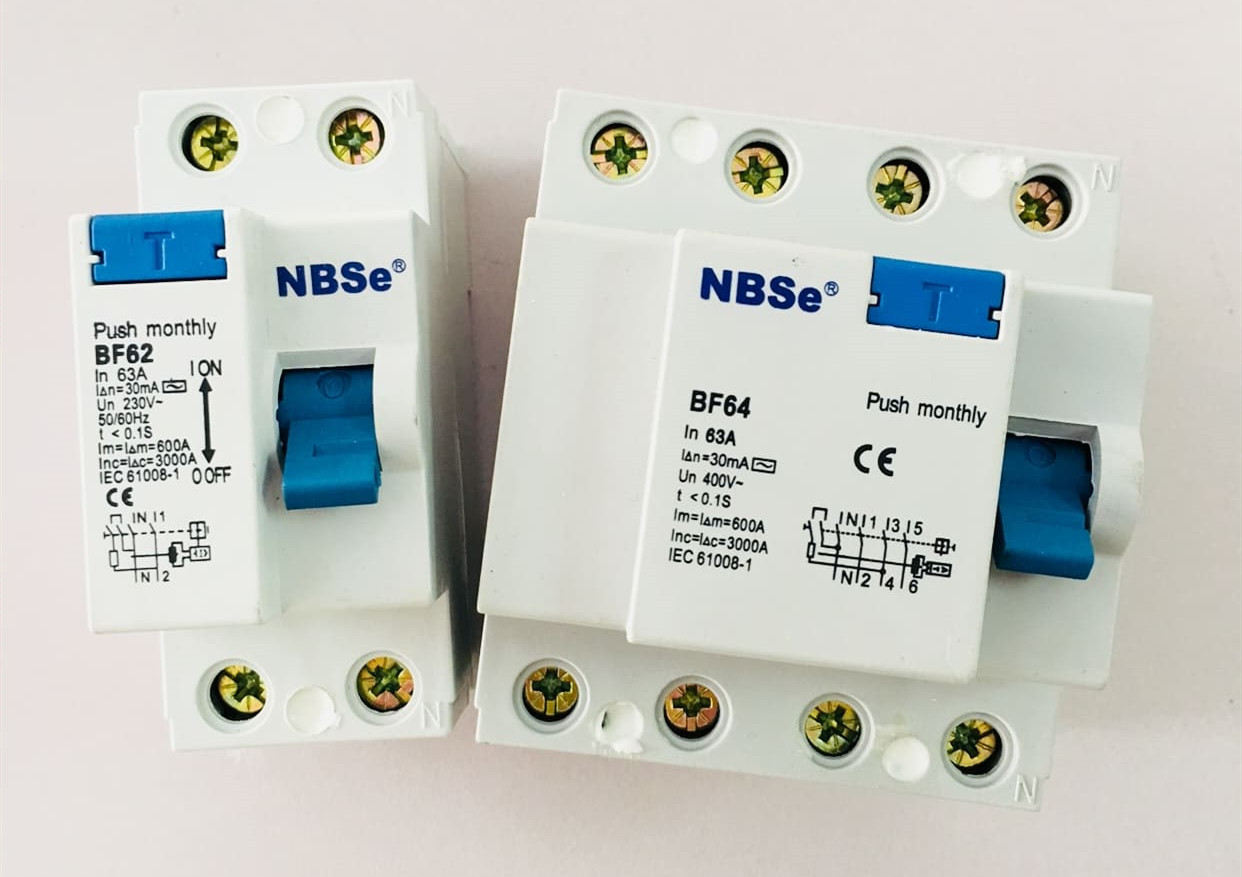

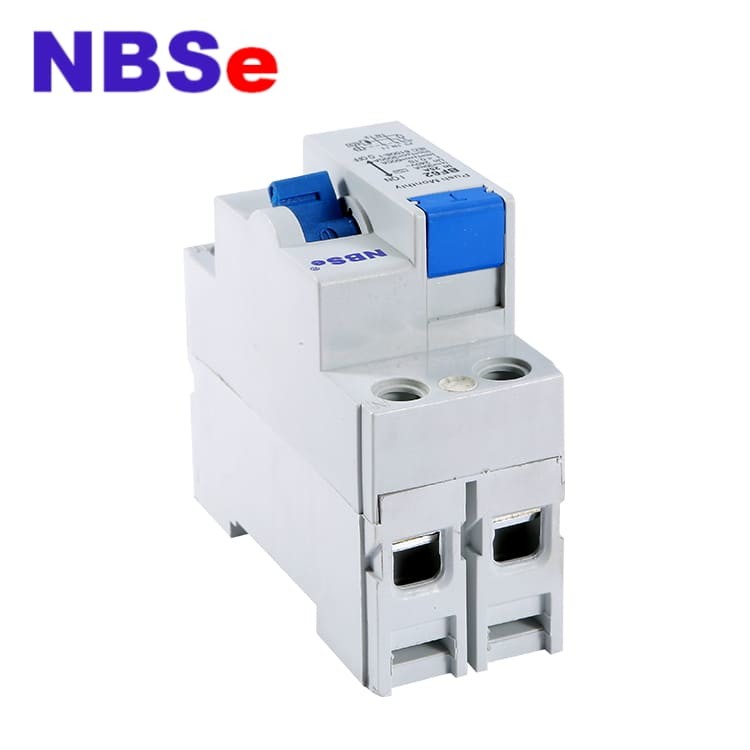

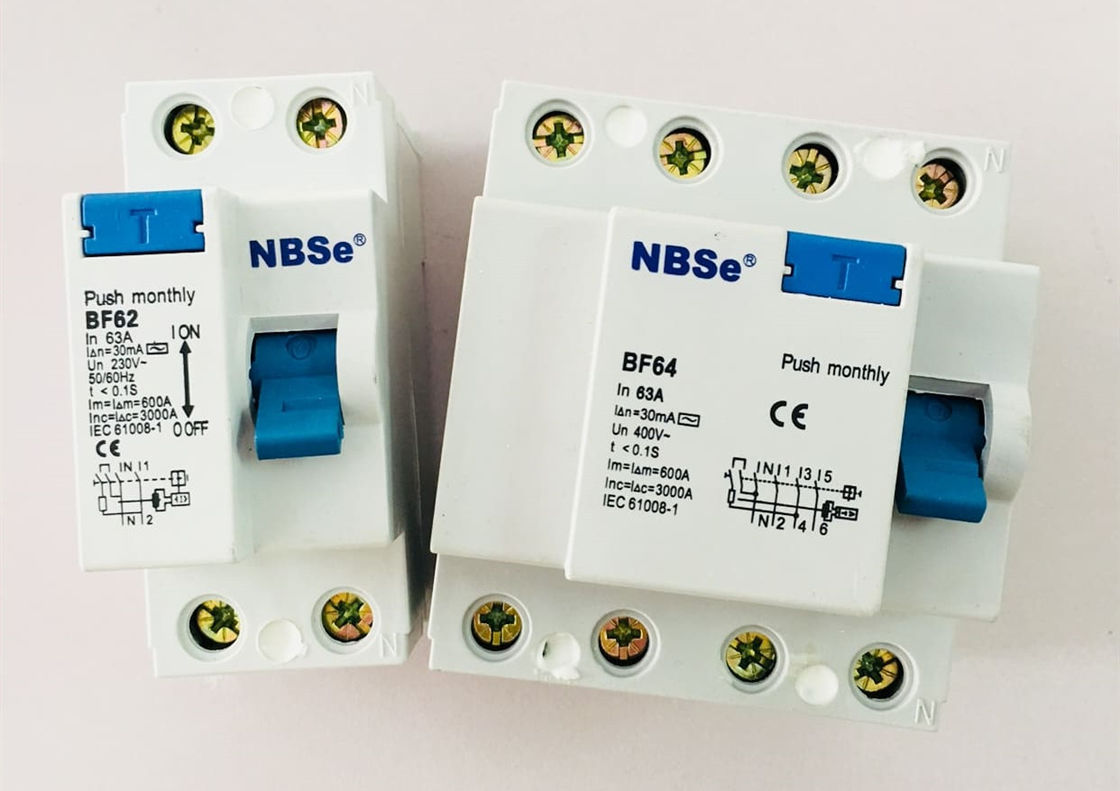

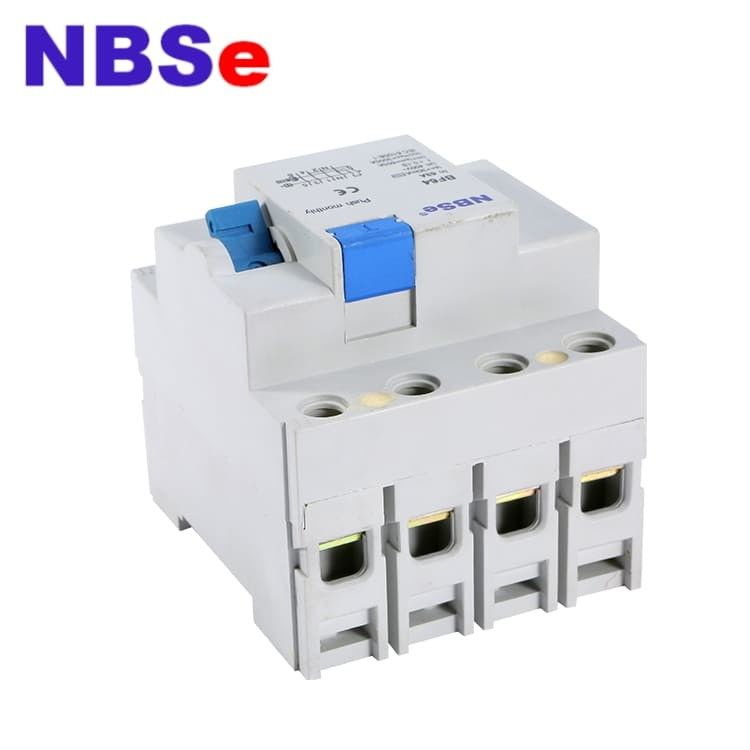

DP PVC Plastic Base Residual Current Circuit Breaker White Color 50/60Hz



1. APPLICATION



ID series residual current circuit breakers are applied to the lines with AC 50/60Hz,rated voltage of230V(1P+N) or 400V(3P+N),and rated current of 100A.In case of electric shock or electric leakage current exceeds the specified value, the residual current circuit breaker can switch off the fault circuit in a very short time, protecting the safety of person and electric equipment.

Can be used in the industrial, commercial, high-rise buildings, civil residences and other places.

    Main Features:
    Double pole RCCB circuit breakers in a range of current options
    Easily installed in your ESR modular consumer unit
    Safe and reliable product that is known to save lives and severely reduce risk of property damage



2. TECHNICAL PARAMETER





Technical Parameter
Spec Parameter
Rated Operating voltage(Ue) 230V(1P+N)/400V(3P+N)
Rated Current(In) 6,16,25,32,40,50,63A
Tripping Type Electronic,Electromagnetic
Characteristic A type, AC type, S type
Poles 1P+N,3P+N
Rated Frequency 50/60Hz
Rated Insulation voltage(Ui) 500V
Rated residual current (IΔn) 10,30,100,300mA
Rated residual switching on and 800A
breaking capacity(IΔm)
Rated residual short-circuit current 6000A
limit(IΔc)
Rated short-circuit current limit(Inc) 6000A
Rated switching on and breaking capaity(Im) 800A
Residual current tripping time t<0.1s
Rated impulse withstand voltage(Uimp) 6kV
Electro-Mechanical life(times) >4,000 times

Standard Certificate
Comply with Standard IEC 61008-1
GB 16916
Certificate CE, CB,




Working Envirnment
Humidity 40℃ humidity notexceed 50% 20℃ humidity not exceed 90%
(Condensation on the product due to
changes in humidity has been considered)
Working Temperature -5℃~+40℃ and its average over aperiod of 24h does not exceed
Magnetic field No more than 5 times the geomagnetic field
Pollution level 2
Altitude(m) 2000

Mounting and Wiring
Shock and vibration Should be installed in the case of no obvious impact vibration
Installation category
Terminal connection types type cable,type U bus, TH 35mm Din-rail
Wiring terminal connection conductor 1.5~25 mm²
Wiring terminal copper size 25 mm²
Tightening torque 3.5N*m
Installation mode UsingTH35-7.5 profile installation, the title of
installation face and vertical face is not greater than5°
Wiring incoming mode upper and lower incoming is possible for ELM type,
only upper incoming for ELE type




3. OPERATION PRINCIPLE FIG.

DP PVC Plastic Base 50/60Hz Residual Current Circuit Breaker 0





4. WORKING PRINCIPLE

DP PVC Plastic Base 50/60Hz Residual Current Circuit Breaker 1

Benefits of RCCB

  • Provides protection against earth fault as well as any leakage current
  • Automatically disconnects the circuit when the rated sensitivity is exceeded
  • Offers possibility of dual termination both for cable and busbar connections
  • Offers protection against voltage fluctuation as it includes a filtering device that guards against transient voltage levels.



Sensitivity of RCCB

A human being is able to sustain an electric shock to the extent of 30 mA. While upto 10 mA may just evoke a prickling sensation, 10 mA onwards may lead to muscular contraction, further leading to a respiratory paralysis at around 30mA. RCCBs are therefore designed to look for small changes in residual current. In cases where protection from fire is sought, RCCBs are also used to track higher changes in residual current of up to 300mA.



FAQ:
Q1: What's your product Range?
A.
- Shell Unti-fire. nylon pa66 or not unti-fire.
- Parts, Copper or iron
- Point Sliver point or Copper point

Q2: Are you a manufacturer?
A. Yes, we are only produce the circuit breaker over 20 years from 1999.

Q3: Do you have stock products to sell?
A. No,we work on OEM orders, The means, material, quantity,packing solution,etc will depend on your requests.obviously, your logo can be printed on the products.

Q4. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q5. how's the delivery time ?
A. usually it will take about 30 days for 30000pcs

Q6. tell me the standard of package?
A. Normally are cartons, color box or white box

Q7. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q8. We want to know month capacity.
A. 400,000pcs/month
Q9. Where is your market?
A. Our products are popular in Western Europe, Middle-East, Afirca, South Asia ,South Ameirca countries and area. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q10. what kind of certificate you have ?
A. CE, CB,CCC,ISO9000.

Q11. Do you inspect the finished products
A. Yes.Each step of products will be inpected by QC department before shipping.

Q12. How are you ship the finished products?
- By Sea
- By plane
- By counties,TNT, DHL,FEDEX,UPS.etc.
