Single Phase Micro Circuit Breaker Mcb Thermal Type , Din Mount Circuit Breaker

Basic Information
Place of Origin: CHINA
Brand Name: NBSe/OEM
Certification: CE,CCC
Model Number: NBSM1-125
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 240pcs/ctn
Delivery Time: 10-20days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 400,000pcs per month
Contact Now
Detail Information
Poles Number: 1P,2P,3P,4P Material: PA66
Rated Voltage: 220V/440V Breaking Capacity: 4.5KA/6KA
Rated Frequency: 50/60Hz Standard: IEC/EN60898
Port: Ningbo/Shanghai Lead Time: 10-20days
Type: Mini,Conventional,Thermal Type Rated Voltage: 230/400V
Electrical Life: ≥ 10000 Cycles

Product Description

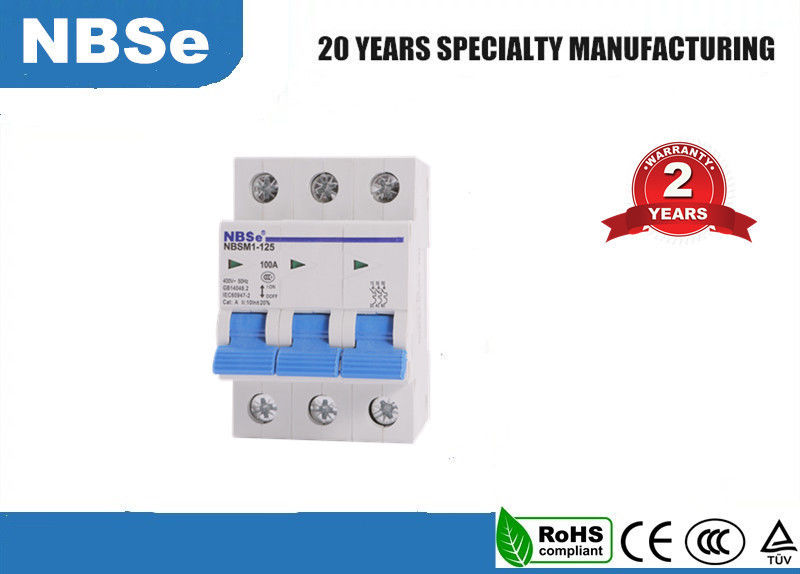

NBSM1-125 Series Mini Circuit Breaker , din mount circuit breaker



A residual-current device (RCD), or residual-current circuit breaker (RCCB) is an electrical wiring device that disconnects a circuit whenever it detects that the electric current is not balanced between the energized conductor and the return neutral conductor. Such an imbalance may indicate current leakage through the body of a person who is grounded and accidentally touching the energized part of the circuit. A lethal shock can result from these conditions. RCCBs are designed to disconnect quickly enough to prevent injury caused by such shocks. They are not intended to provide protection against overcurrent (overload) or all short-circuit conditions.



1. Application

DN DK mcb is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl

the product is suitable for industry,business,building,ressidence,etc.

It's conformity with CE GB10963,IEC60898 EN898 standards.



2. Main technical data

Rated temperature 40C
Rated voltage 230V/400V AC
Rated current: 6,10,15,16,20,25,32,40,50,60,63,80,100,125A
Electric endurance not lower than 6000 times
Mechanical endurance lower than 20000 times
Tropical test:2 kinds
Weight(g) 1P 2P 3P 4P
100 202 304 406



Standard Rated current (A) Pole Voltage (V) Breaking capacity(A)
EN898 IEC898 1 to 40 1 240 6000
2,3,4 415 6000
IEC157-1 1 to 40 1 220/240 6000
2,3,4 220/240 12000
2,3,4 380/415 6000

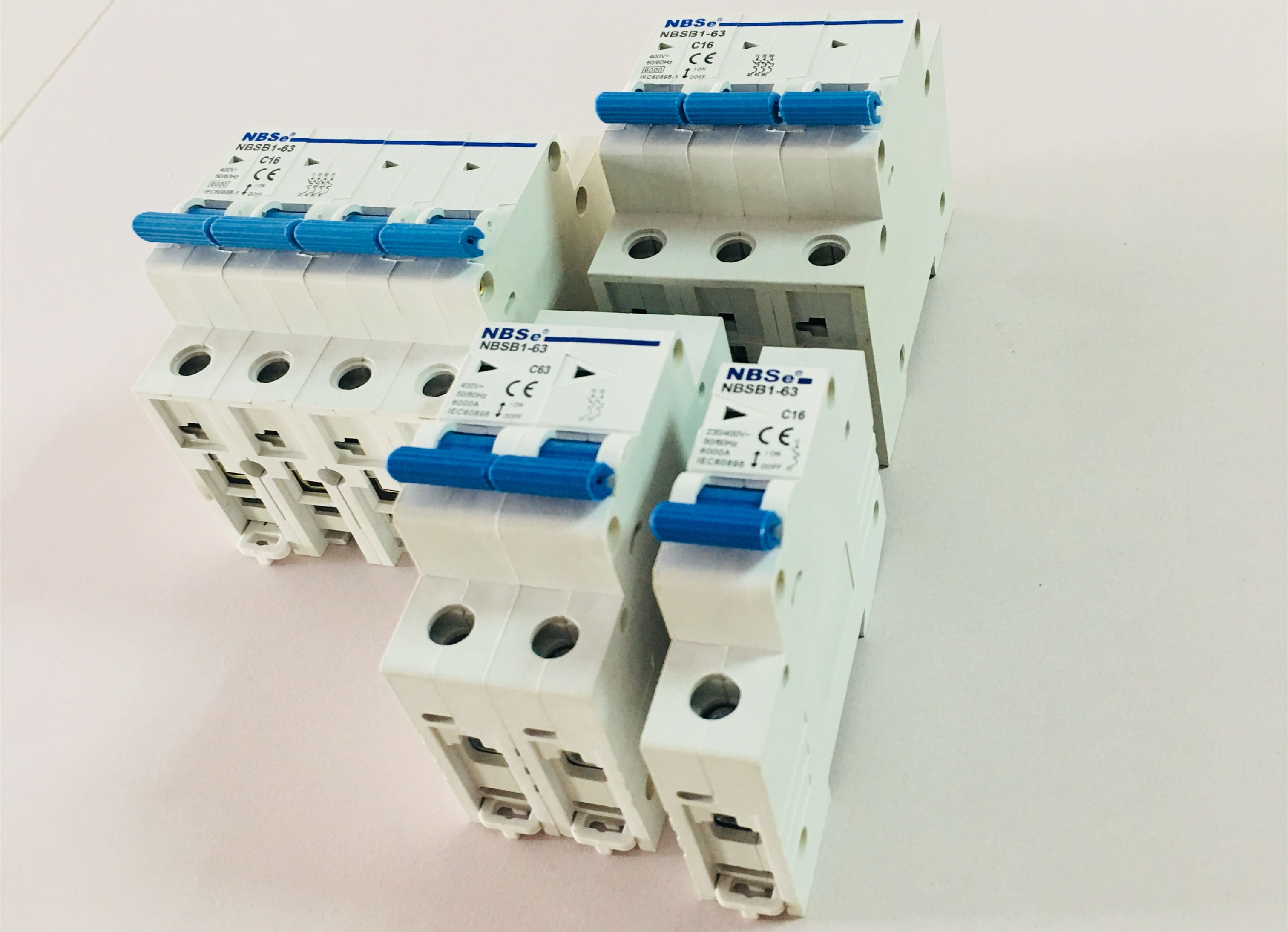

3. Product show

Material: unti-fire Nylon PA66, Copper and silver point.

Single Phase Micro Circuit Breaker Mcb Thermal Type , Din Mount Circuit Breaker



4. The over-current protection property



Ambient Temperature Initial Status Test Current Expected Result Expected Result Note
30±2oC Cold position 1.13In t≥1h Non-release -
Carried out immediatelyafter previous test 1.45In t < 1h Release -
Cold position 2.55In 1s < t< 60s(In≥32A) Release Current smoothly rises tospecified value within 5s
Cold position 2.55In 1s < t < 120s(In>32A) Release
-5~+40oC Cold position 3In t≥0.1s Non-release Type B
Cold position 5In t < 0.1s Release Type B
Cold position 5In t≥0.1s Non-release Type C
Cold position 10In t < 0.1s Release Type C
Cold position 10In t≥0.1s Non-release Type D
Cold position 20In t < 0.1s Release Type D
