NBSL1-100 Residual Current Circuit Breaker Differential 4 Poles (RCCB) 100Amp 30mA

Good quality Industrial Type Circuit Breaker for sales
Good quality Industrial Type Circuit Breaker for sales
New Blue Sky is a rigor partner. they can always keep the quality and fast delivery. we once invited their team to visit out workshop. they learns fast.

—— Greg Henk

New Blue Sky is a reassuring supplier. and New Blue Sky stands out among Chinese spare parts makers. I recommand their team to many of my friends.

—— Alexander Kozhushko

I'm Online Chat Now

NBSL1-100 Residual Current Circuit Breaker Differential 4 Poles (RCCB) 100Amp 30mA

China NBSL1-100 Residual Current Circuit Breaker Differential 4 Poles (RCCB) 100Amp 30mA supplier
NBSL1-100 Residual Current Circuit Breaker Differential 4 Poles (RCCB) 100Amp 30mA supplier NBSL1-100 Residual Current Circuit Breaker Differential 4 Poles (RCCB) 100Amp 30mA supplier NBSL1-100 Residual Current Circuit Breaker Differential 4 Poles (RCCB) 100Amp 30mA supplier

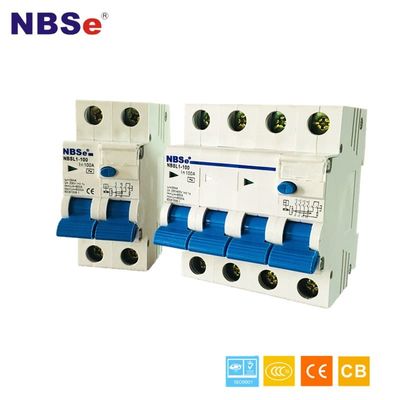

Large Image :  NBSL1-100 Residual Current Circuit Breaker Differential 4 Poles (RCCB) 100Amp 30mA

Product Details:

Place of Origin: CHINA
Brand Name: NBSE/OEM
Certification: CE,CB,CCC,RoHS,WEEE
Model Number: NBSL1-100

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Export Carton
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000pcs per month
Contact Now
Detailed Product Description
Type: Type AC Poles Number: 4P
Rated Frequency: 50/60Hz Rated Voltage: 415V
Rated Current: 100A Leakage Action Current: 30mA,100mA,300mA
Standard: IEC61008-1 Warranty: 2 YEARS
Breaking Capability: 6000A Material: High Standard Plastic Silver Copper,Silver Contact,Flame Resistant Plastic

NBSe NBSL1-100 Series Residual Current Circuit Breaker,Differential 4 poles (RCCB) 100Amp 30mA



1. APPLICATION



Three-phase differential electric differential switch of 25A 30 mA, 4 poles for protection of people against insulation / derivation problems in installations or electrical elements. For use in domestic, tertiary and industrial sectors.

Class of employment "AC" standard.

This type of differential is of electromagnetic operation, which allows not to lose the safety function in case of voltage supply variations or loss of the neutral conductor, only with the derivation in the active phase the triggering of the difference occurs. Being electromechanical, it provides a wide range of operating voltage (typical between 6 and 415V), which implies a high degree of immunity to variations in the input voltage, and likewise, the safety function is not lost before the power failure in the neutral or loss of any of the active phases.

The neutral terminal is located first on the left.



Technical characteristics:

Manufacturer: NBSe Electric.
Employment in tertiary and industrial sector.
Caliber: 100A.
Number of poles: 4 (3P + N).
Sensitivity (IΔn): 30mA.
Type: Electromagnetic
Class: "AC".
Operating voltage: 415 Vac.
Cutting power (Icn): 6000 A.
Regulations: IEC61008-1
CE Marking
Connection capacity: 25 mm2 cable.
Allows the use of PIN-type connection combs
Dimensions: 4 modules, 72mm.



3. OPERATION PRINCIPLE FIG.

NBSL1-100 Residual Current Circuit Breaker Differential 4 Poles (RCCB) 100Amp 30mA



4. DIMENSION DIAGRAM

NBSL1-100 Residual Current Circuit Breaker Differential 4 Poles (RCCB) 100Amp 30mA

5. WORKING PRINCIPLE

NBSL1-100 Residual Current Circuit Breaker Differential 4 Poles (RCCB) 100Amp 30mA
FAQ:
Q1: What's your product Range?
A.
- Shell Unti-fire. nylon pa66 or not unti-fire.
- Parts, Copper or iron
- Point Sliver point or Copper point

Q2: Are you a manufacturer?
A. Yes, we are only produce the circuit breaker over 20 years from 1999.

Q3: Do you have stock products to sell?
A. No,we work on OEM orders, The means, material, quantity,packing solution,etc will depend on your requests.obviously, your logo can be printed on the products.

Q4. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q5. how's the delivery time ?
A. usually it will take about 30 days for 30000pcs

Q6. tell me the standard of package?
A. Normally are cartons, color box or white box

Q7. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q8. We want to know month capacity.
A. 400,000pcs/month
Q9. Where is your market?
A. Our products are popular in Western Europe, Middle-East, Afirca, South Asia ,South Ameirca countries and area. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q10. what kind of certificate you have ?
A. CE, CB,CCC,ISO9000.

Q11. Do you inspect the finished products
A.Yes.Each step of products will be inpected by QC department before shipping.

Q12. How are you ship the finished products?
- By Sea
- By plane
- By counties,TNT, DHL,FEDEX,UPS.etc.
