Type A RCD Circuit Breaker NBSL1-100 Series With Current Limiting Performance

Basic Information
Place of Origin: CHINA
Brand Name: NBSE/OEM
Certification: CE,CB,CCC,RoHS,WEEE
Model Number: NBSL1-100
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Export Carton
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000pcs per month
Detail Information
Type: Type A Poles Number: 2P
Rated Frequency: 50/60Hz Rated Voltage: 240V/415V
Rated Current: 100A Leakage Action Current: 30mA,100mA,300mA
Standard: IEC61008-1 Warranty: 2 YEARS
Breaking Capability: 6KA/10KA
High Light:

residual current operated circuit breaker

,

differential switch circuit breaker


Product Description

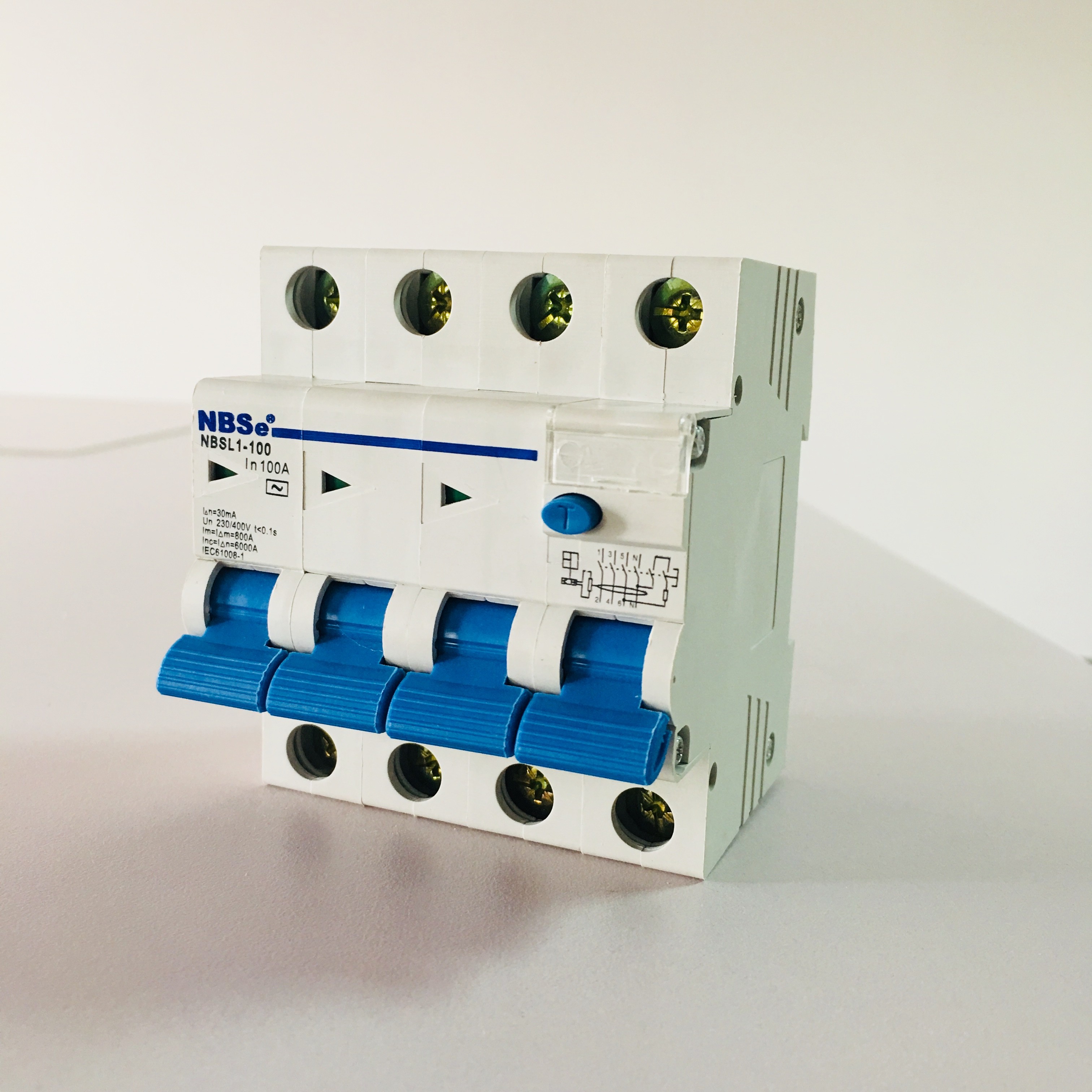

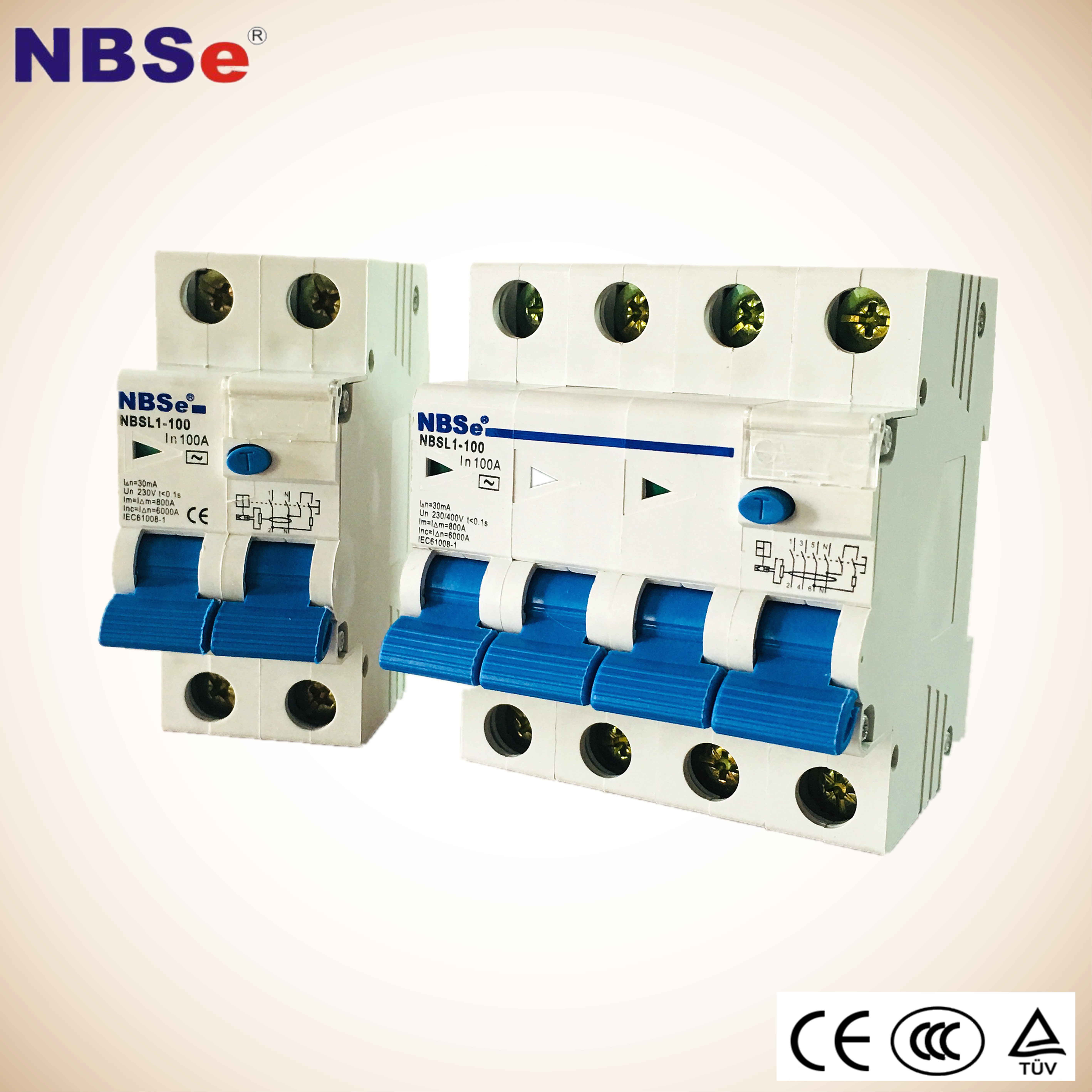

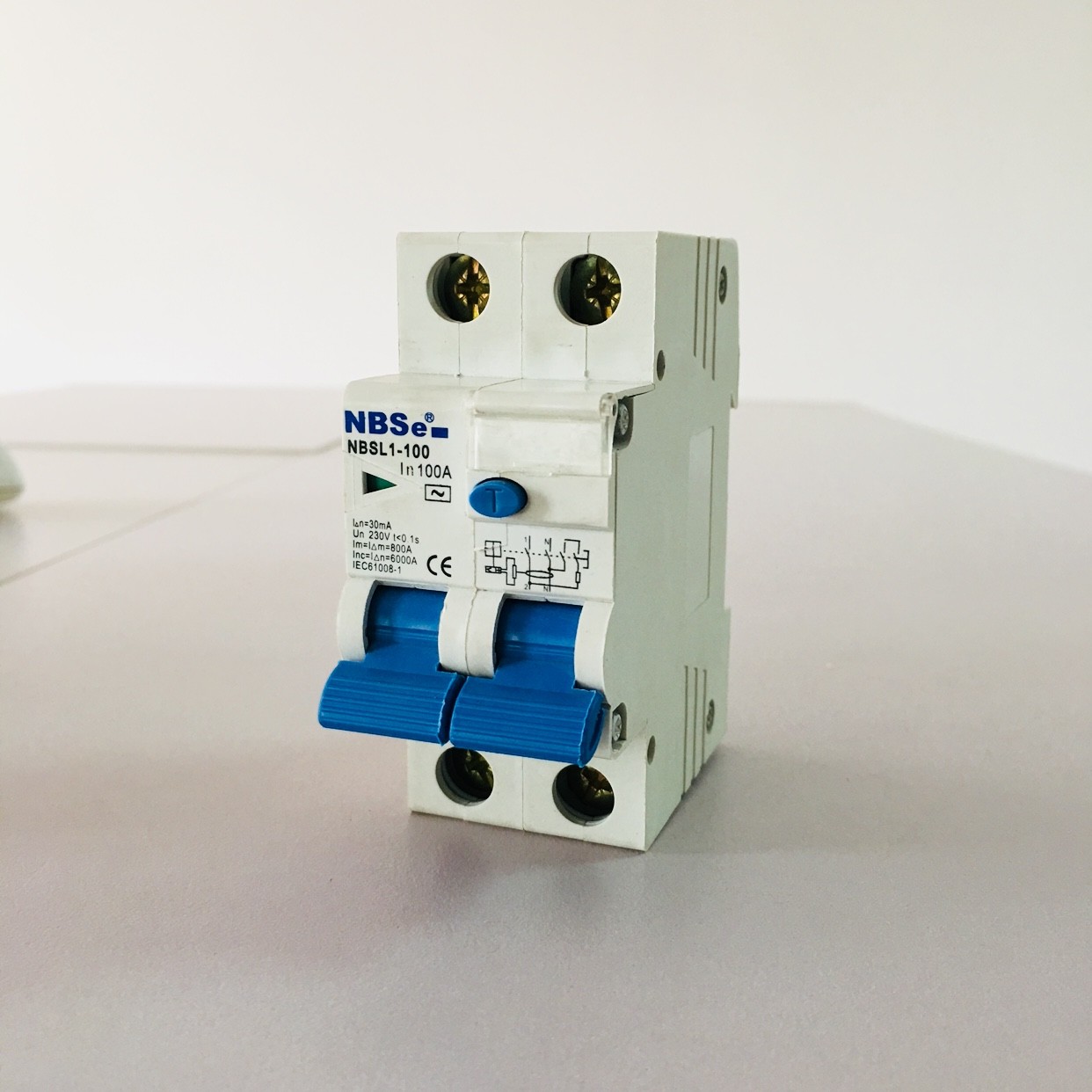

NBSe NBSL1-100 Series Residual Current Circuit Breaker,Type A RCD



1. APPLICATION



NBSL1-100 series residual current circuit breakers are applied to the lines with AC 50/60Hz,rated voltage of230V(1P+N) or 400V(3P+N),and rated current of 100A.In case of electric shock or electric leakage current exceeds the specified value, the residual current circuit breaker can switch off the fault circuit in a very short time, protecting the safety of person and electric equipment.

Can be used in the industrial, commercial, high-rise buildings, civil residences and other places.



2. TECHNICAL PARAMETER


Technical Parameter
Spec Parameter
Rated Operating voltage(Ue) 230V(1P+N)/400V(3P+N)
Rated Current(In) 16,25,32,40,50,63,80,100
Tripping Type Electronic,Electromagnetic
Characteristic A type, AC type, S type
Poles 1P+N,3P+N
Rated Frequency 50/60Hz
Rated Insulation voltage(Ui) 500V
Rated residual current (IΔn) 10,30,100,300mA
Rated residual switching on and 800A
breaking capacity(IΔm)
Rated residual short-circuit current 6000A
limit(IΔc)
Rated short-circuit current limit(Inc) 6000A
Rated switching on and breaking capaity(Im) 800A
Maximun breaking time(IΔm) 0.3s
Rated impulse withstand voltage(Uimp) 6kV
Mechanical life(times) >10,000 times
Standard Certificate
Comply with Standard IEC 61008
GB 16916
Certificate CE, CB, RoHS,WEEE



Working Envirnment
Humidity 40℃ humidity not exceed 50% 20℃ humidity not e x c ee d 90%
Mounting and Wiring
Wiring terminal connection conductor 1.5~25 mm²
Wiring terminal copper size 25 mm²
Installation mode

UsingTH35-7.5 profile installation, the title of installation face

and vertical face is not greater than5°





3. OPERATION PRINCIPLE FIG.

Type A RCD Circuit Breaker NBSL1-100 Series With Current Limiting Performance 0



4. DIMENSION DIAGRAM

Type A RCD Circuit Breaker NBSL1-100 Series With Current Limiting Performance 1

5. WORKING PRINCIPLE

Type A RCD Circuit Breaker NBSL1-100 Series With Current Limiting Performance 2
