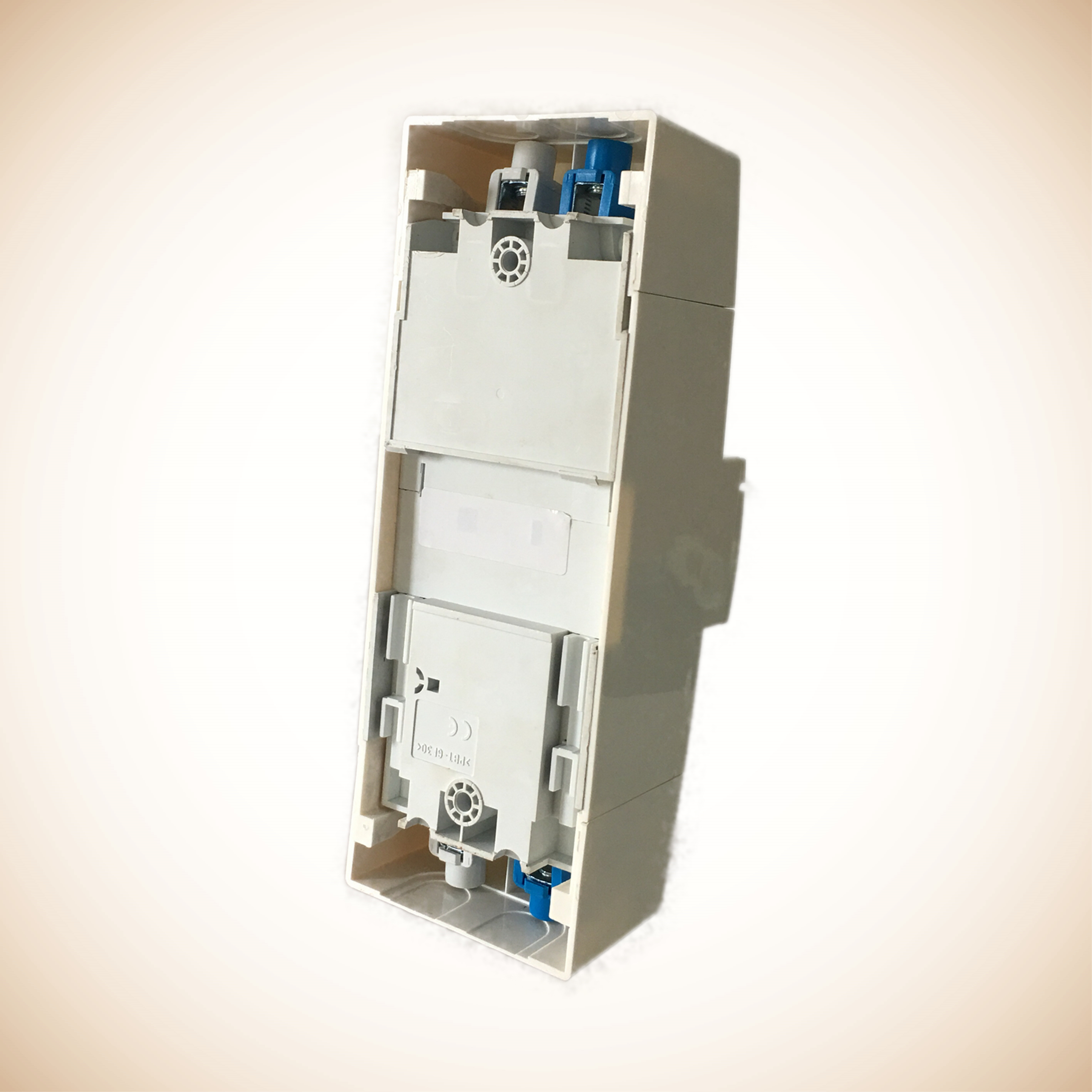

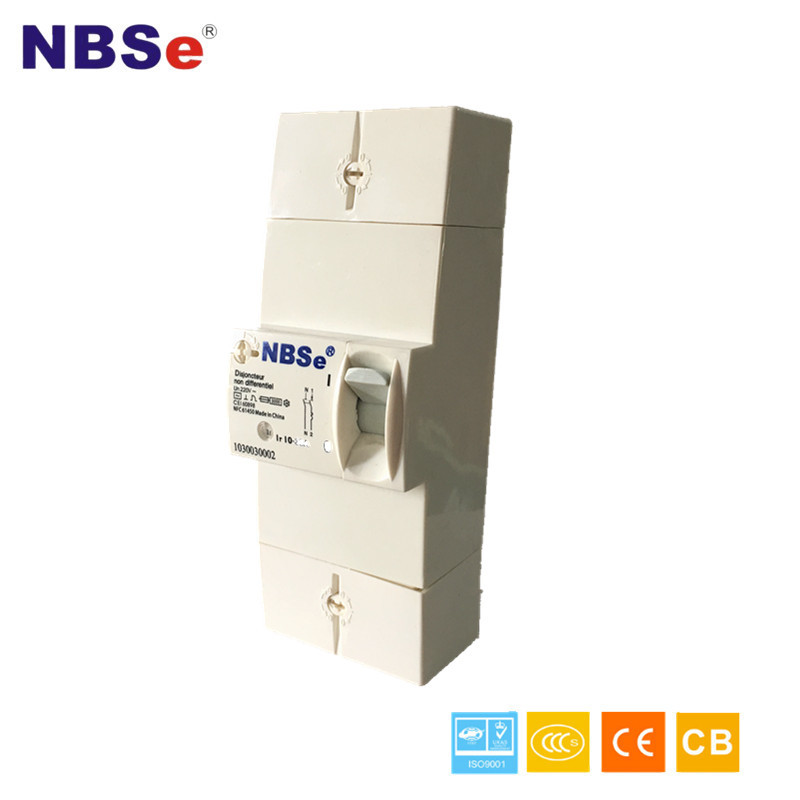

NBSe DDC RCBO 2P Differential Circuit Breaker 10-30A 500mA 10-15-20-25-30A

Basic Information
Place of Origin: CHINA
Brand Name: NBSE/OEM
Certification: CE, ISO9000
Model Number: DDC
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export Carton
Delivery Time: 15-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000pcs per month
Detail Information
Type: Molded Case Poles: 2P
Rated Voltage: 220V/240V Rated Current: 10-15-20-25-30A
Leakage Operating: 300mA, 500mA Standard: NFC61450
Shell: Fire-proof
High Light:

mccb circuit breaker

,

current circuit breaker


Product Description

NBSe DDC RCBO 2P Differential Circuit Breaker 10-30A 500mA 10-15-20-25-30A





Advantage

  • Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
  • Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
  • The fast and flexible production form aim at the customer require;
  • The deliveries exactly in accordance with customer orders
  • The fast transportation.
  • Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.





Application



The DDC breaker is divided into 2 poles and 4 poles. It can be applied to the circuit breaker installed on the control panel of the primary equipment, and can also be applied to the control terminal of the shopping mall, base station and home power supply board.

Feature as below:

1)This product has a high level of safety protection.

2)Not affected by ambient temperature.

3)Multi-step adjustable of rated current.

4)Rated current digital display.

5)With anti-stealing function



Specification and Configuration



POLE: 2P, 4P
Ue: 230/400V
In: 5-15A(5, 10, 15)A;

10-30A(10, 20, 30)A;

10-30A(10, 15, 20, 25, 30)A;

30-60A(30, 45, 60)A;

60-90A(60, 75, 90)A
Breaking Capacity : 3KA

Residual current: 300mA, 500mA



3.Outshell and installation dimensions

NBSe DDC RCBO 2P Differential Circuit Breaker 10-30A 500mA 10-15-20-25-30A 0
