N30-32 1P+N DPN Micro Circuit Breaker

Basic Information
Place of Origin: CHINA
Brand Name: NBSe/OEM
Certification: CE,CCC
Model Number: N30
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 240pcs/ctn
Delivery Time: 10-20days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 40,000pcs per month
Detail Information
Type: Lighting "C"or Motor"D" Poles Number: 1P+N
Material: PA66 Rated Voltage: 230V
Breaking Capacity: 3KA Rated Frequency: 50/60Hz
Standard: IEC/EN60898 Application: Circuit-breaking,Homes,buildings,industrial
High Light:

miniature circuit breakers

,

electrical circuit breaker


Product Description

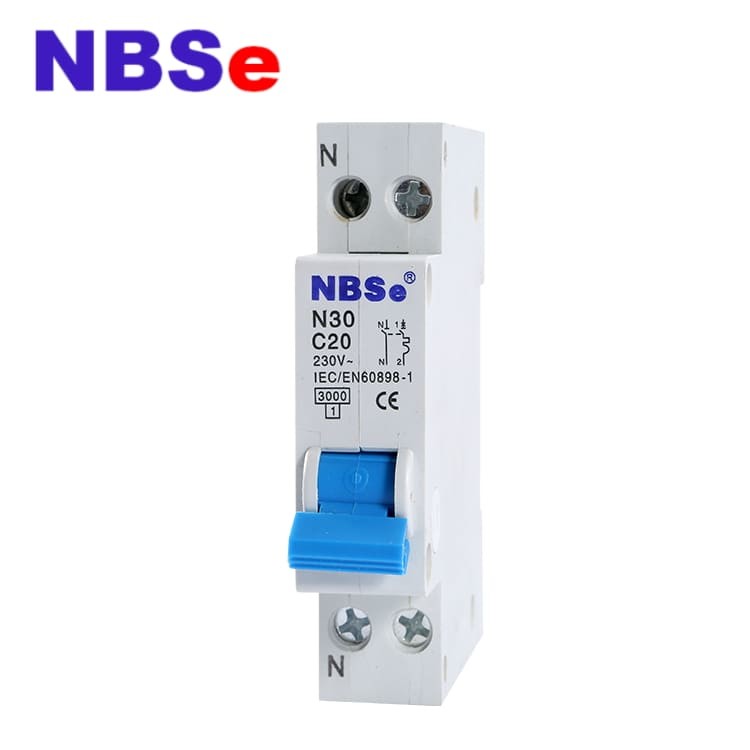

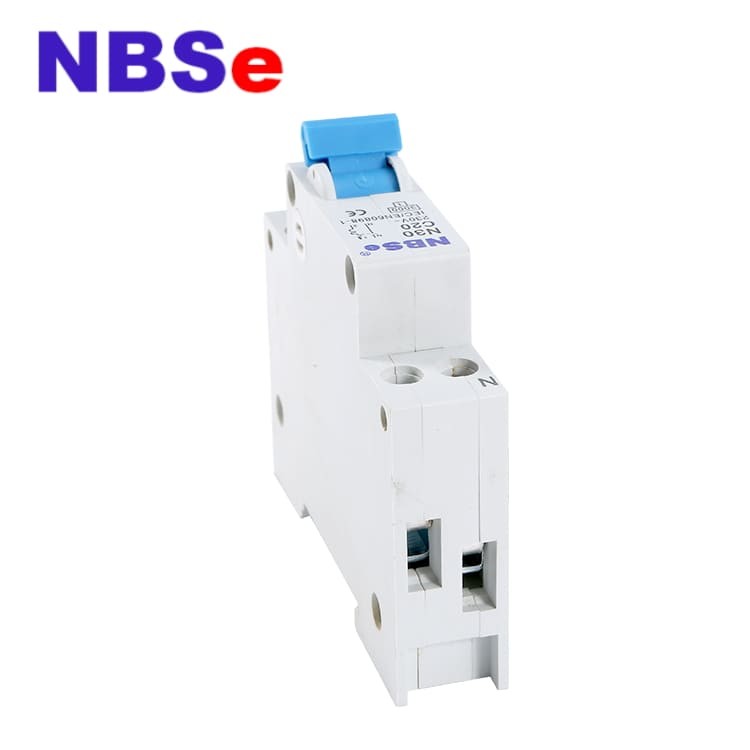

NBSe N30-32 Series 1P+N DPN Circuit Breaker



1. Application

N30-32 is used in the single phase circuit of AC 50Hz/60Hz, rated voltage 230V or below for protecting circuit from overload and short circuit. This product has advantages of high breaking capacity, small volume, width is only 18mm. It conforms with the standards of IEC60898.




2. Main Technical Parameter





Type N30-32
Pole 1P+N
Rated current (A) 6,10,16,20,25,32
Rated voltage(V) 230
Type of instantaneous release C
Rated making/breaking capacity Im(A) 3000





3. Applicable conducting wire



Rated current(A) Norminal cross section of wire mm2
In ≤ 6 1
6 < In ≤ 13 1.5
13 < In ≤ 20 2.5
20 < In ≤ 25 4
25 < In ≤ 32 6







4. The over-current protection property







Ambient Temperature Initial Status Test Current Expected Result Expected Result Note
  Cold position 1.13In t ≥ 1h Non-release -
30 ± 2oC Carried out immediately after previous test 1.45In t<1h Release -
  Cold position 2.55In 1s < t < 60s Release Current smoothly rises to specified value within 5s
-5~+40oC Cold position 5In t ≥ 0.1s Non-release Type C
Cold position 10In t < 0.1s Release Type C



N30-32 1P+N DPN Micro Circuit Breaker 0


Company and Service

Wenzhou New Blue Sky Electrical Co,ltd

located in Wenzhou,Zhejiang is an important economic center in South Gulf Coast, Registered trade mark is “NBSe”.
As one of the top supplier of electrical appliances, We focus on the field of low voltage appliances power distribution,electrical equipment and Industrial automation equipment.

Main products: circuit breaker, moulded case circuit breaker, Isolator switch,contactor,Thermal relay, electrical meter, distribution box, etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,NOM,ROHS,PCT, CCC etc.



Business strategies &Characristic: Quality,Honesty and technological innovation are the corner stones of our company's business strategy.
We are trying to develop NBSe into a world-class Electrical manufacturer.





5. Our Services

(1) Warranty ( 24 months warranty )

1. The warranty starts from the delivery date from our factory;

2. During the warranty, any defective product will get repaired or replaced for free ;

3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.



(2) Lead Time

1. Sample orders will be delivered from our factory within 7 working days.

2. General orders will be delivered from our factory within 7-15 working days.

3. Bulk orders will be delivered from our factory within 25 working days at most



(3) Shippment

1. By EMS, DHL, FedEx, TNT, UPS or other express.

2. By our forwarding agent (by air or by sea).

3. By your own forwarding agent.

4. By domestic forwarding agents to any city in China
