Coil 3 Phase Ac Contactor , Magnetic Starter Switch CJX2-D150 LC1-D150

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CE,ISO9000
Model Number: CJX2
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export Packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs per month
Detail Information
Model No.: CJX2 Electricity Type: AC
Number Of Poles: 3P Phase: 3 Phase
Main Circuit Rating Voltage: 24V~380V Main Circuit Rating Current: 9~125A
Standard: IEC60947-4 Frequency: 50/60Hz
No. Of Auxiliary Contacts:: 1NC/1NO/1NO+1NC Coil Voltage: 24v-660v
Rated Voltage:: 24V 110V 220V 380V 660V
High Light:

ac magnetic contactor

,

magnetic overload relay


Product Description

CJX2-D150 LC1-D150 150A 220V 380Vcoil 3 phase ac contactor magnetic



Application:



LC1-D Series AC Contactor is suitable for using in the circuits up to the rated voltage 660v, AC 50hz/60hz,rated current up to 95A,for making ,breaking frequently starting &machine-interlocking device etc,it becomes the dalay contactor,mechanical interlocking contactor,star-delta starter.with the thermal relay,it is combined into the electromagnetic starter.

The contactor is produced according to IEC60947-4-1 .





Normal Running And Installtion Conditions:



1. Ambient air temperature: -5℃+40℃. the average value should not exceed +35℃ within 24 hours
2. Elevation: at most 2000m.
3. Atmospheric conditions: When the temperature at 40℃,the relative humidity of atomsphere should be
at the most 50%.When at relatively low temperatures, it could have higher relative humidity.Monthly maximum relative humidity could be not more than 90%.Special measures should be taken due to occurrence of dews.
4. Class of pollution:Class 3
5. Installation category: Ⅲ
6. Installation conditions: Degree of inclination between fitting surface and vertical surface should not exceed II
7. Impact shock: Product should be installed and used in the place where often shakes and impacts.



Main Technical Parameter:



Type

LC1

D09

LC1

D12

LC1

D18

LC1

D25

LC1

D32

LC1

D40

LC1

D50

LC1

D65

LC1

D80

LC1

D95

Rated workingcurrent (A) AC3 9 12 18 25 32 40 50 65 80 95
AC4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
Standardpower ratingsof 3-phasemotors50/60Hz incategory AC-3 220/230V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
380/400V 4 5.5 7.5 11 15 18.5 22 30 37 45
415V 4 5.5 9 11 15 22 25 37 45 45
500V 5.5 7.5 10 15 18.5 22 30 37 55 55
660/690V 5.5 7.5 10 15 18.5 30 33 37 45 55
Rated heat current (A) 20 20 32 40 50 60 80 80 125 125
Electrical life AC3 (x104) 100 100 100 100 80 80 60 60 60 60
AC4 (x104) 20 20 20 20 20 15 15 15 10 10
Mechanical life (x104) 1000 1000 1000 1000 800 800 800 800 600 600
Number of the contacts 3P+NO 3P+NC+NO
3P+NC

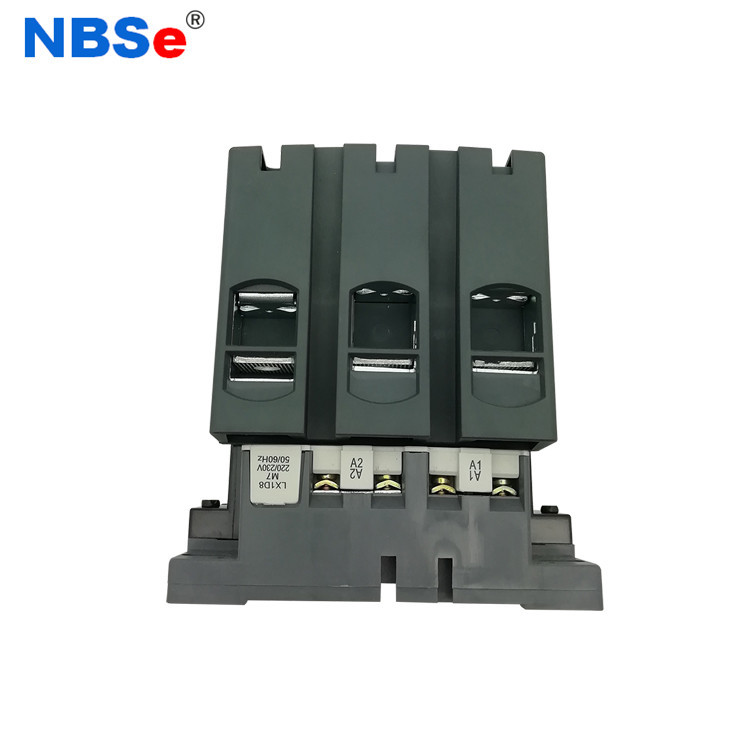

Coil 3 Phase Ac Contactor ,  Magnetic Starter Switch CJX2-D150 LC1-D150 0



Coil 3 Phase Ac Contactor ,  Magnetic Starter Switch CJX2-D150 LC1-D150 1



 Our Services

(1) Warranty ( 24 months warranty )

1. The warranty starts from the delivery date from our factory;

2. During the warranty, any defective product will get repaired or replaced for free ;

3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.



(2) Lead Time

1. Sample orders will be delivered from our factory within 7 working days.

2. General orders will be delivered from our factory within 7-15 working days.

3. Bulk orders will be delivered from our factory within 25 working days at most



(3) Shippment

1. By EMS, DHL, FedEx, TNT, UPS or other express.

2. By our forwarding agent (by air or by sea).

3. By your own forwarding agent.

4. By domestic forwarding agents to any city in China
