| Model Number: | NBSK1-125 | Ampere: | 100A Isolator |
|---|---|---|---|
| Rated Voltage: | 230V/400V | Pole: | 2 Pole |
| Usage Category: | AC-22A | Mounting: | Din-Rail Mounting |
| Standard: | IEC60947-3,GB14048.3 | Rated Short Circuit On-off Capability: | 20Ie ON 0.1s |
| Isolating Function: | Yes | ||
| High Light: | 2 Pole isolator on off switch,100 amp isolator on off switch,100A power isolator switch |
||

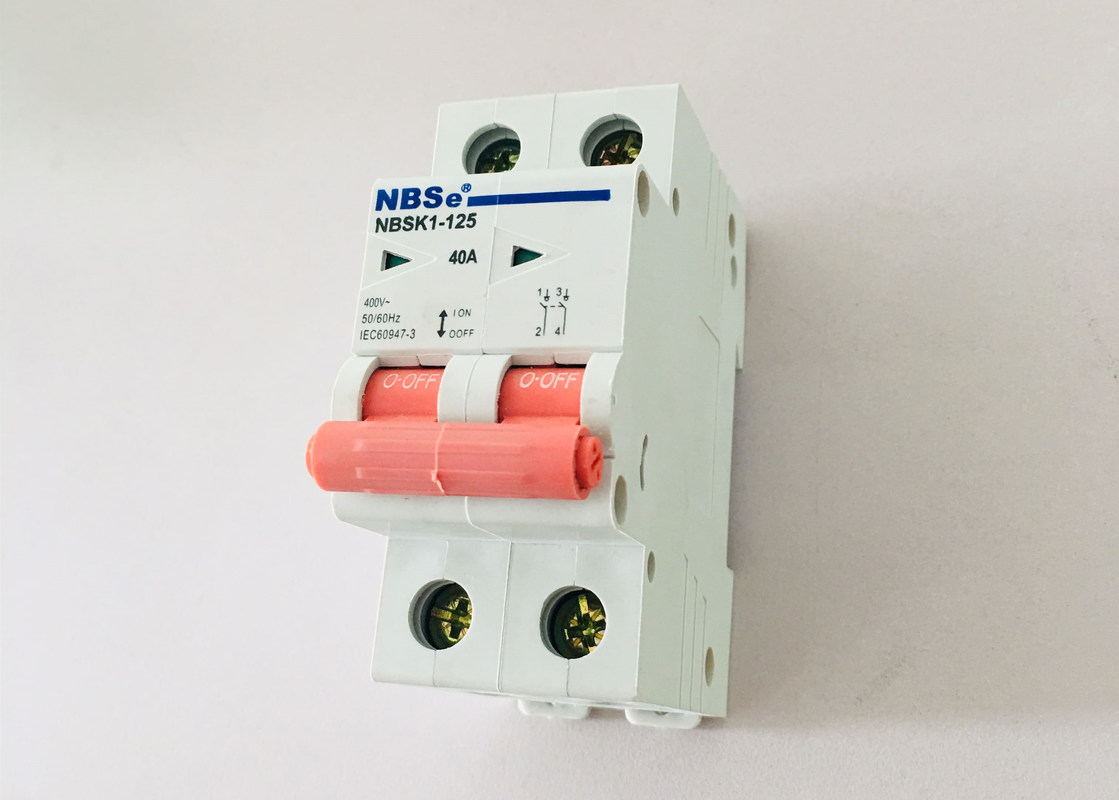

NBSK1-125 Series Main Switch 2 Pole, Isolator On Off Switch , Isolator 100 Amp
Applicable:
Isolating switch applied to AC 50/60 Hz, rated current 125 A, rated voltage 400 V power distribution and control circuit, mainly as the main switch in terminal combination electric appliance, can also be used for infrequent control all kinds of small power electrical appliances and lighting, widely used in industrial and mining enterprises, high-rise buildings, commercial and family etc.
Description:
1. Thermosetting material shell, high stability of Mechanical property and size, Excellent corrosion resistance, and Heat resistance and arc resitance, Excellent performance
2. Double contact design, Reliable action
3. optimal design for contact system and trip mechanism
4. Spring energy storage design to
5. din rail mounting,easily be used with Modular electrical devices
Main technical parameter
| Standard | IEC/EN 60947-3 | ||
|
|
Rated voltage Ue | V | 240/415 |
| Rated current le | A | 32, 40, 63, 80, 100, 125 | |
| Rated frequency | Hz | 50/60 | |
| Poles | 1,2,3,4 | ||
| Rated impulse withstand voltage (1.2/50)Uimp |
V | 4,000 | |
| Rated short-time withstand current lcw | 12le, 1s | ||
| Rated making and breaking capacity | 3le, 1.05Ue, cosΦ=0.65 | ||
| Rated short circuit making capacity | 20le, t=0.1s | ||
| Dielectric test voltage at ind. Freq. for 5s | kV | 1.89 | |
| Insulation voltage Ui | V | 500 | |
| Pollution degree | 2 | ||
| Uilization category | AC-22A | ||
|
|
Electrical life | 1,500 | |
| Mechanical life | 8,500 | ||
| Protection degree | IP20 | ||
| Ambient temperature (with daily average≤35ºC) | ºC | -5...+40 | |
| Storage temperature | ºC | -25...+70 | |
|
|
Terminal connection type | Cable/Pin-type busbar/U-type busbar | |
|
Terminal size top/bottom for cable
|
mm2 | 50 | |
| AWG | 18-1/0 | ||
|
Terminal size top/bottom for busbar
|
mm2 | 35 | |
| AWG | 18-2 | ||
|
Tightening torque
|
N·m | 2.5 | |
| In-Ibs. | 22 | ||
| Connection |
From top and bottom |
