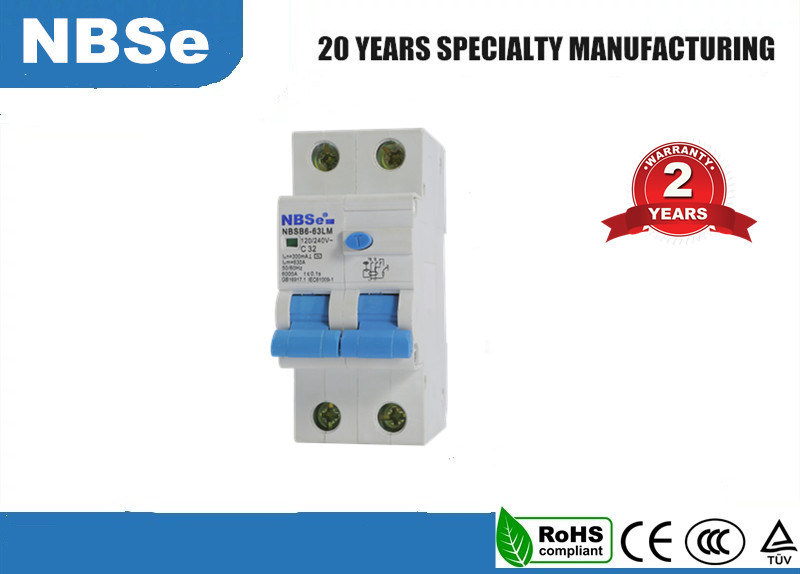

CE PA66 4P 63a Residual Current Operated Circuit Breaker

Basic Information
Place of Origin: CHINA
Brand Name: NBSe/OEM
Certification: CE
Model Number: NBSM6-63LM
Detail Information
Pole Number: 2P , 1P+N Rated Voltage: 230V
Rated Current: 6,10,16,20,25,32,40,50,63A Protection: MCB+RCD
Function: Leakage Protection Residual Current: 10mA,30mA,100mA
Tripping Curve: C,B,D Curve Standard: IEC/EN61009
Mounting: Din-rail Type Product Name: RCBO,Electrical RCCB/RCD/ELCB
Material: Fire Proof PA66 Application: Household,Terminal Distribution,Electrical Power,widely,Electricity Distribution Room
High Light:

63a residual current operated circuit breaker

,

63a 4 pole rcbo

,

PA66 residual current operated circuit breaker


Product Description

IEC/EN61009 Standard 63a RCBO RCCB With Overload Protection Circuit Breaker



General description



RCBO used in the single phase circuit of AC 50Hz/60Hz, rated voltage 230V, used as electron shock protection. It can protect circuit form overload and short circuit. This product has advantages of small volume, high breaking capacity, live and zero wire are cut off at the same time, also protecting person from electric shock when the live wire connected opposite. It conforms with the standards of IEC61009.



EARTH FAULT PROTECTION



The r.c.d elment of the device provides core-balance detecton of the difference between line and neutral currents and amplificaton to provide high sensitivity.





Main Technical Parameter



Type NBSB6-63LM
Pole 1P+N
Rated current (A) 6,10,16,20,25,32,40,50,63
Rated voltage(V) 230
Rated residual action current In(A) 0.03
Rated residual non-action current Ino(A) 0.015
Rated residual making/breaking capacity Im(A) 500
Type of instantaneous release C
Rated making/breaking capacity Im(A) 800





The over-current protection property



Ambient Temperature Initial Status Test Current Expected Result Expected Result Note
  Cold position 1.13In t ge 1h Non-release -
30plusmn2oC Carried out immediately after previous test 1.45In t<1h Release -
  Cold position 2.55In 1s < t < 60s Release Current smoothly rises to specified value within 5s
-5~+40oC Cold position 5In t ge 0.1s Non-release Type C
Cold position 10In t < 0.1s Release Type C





IEC/EN61009 Standard 63a RCBO RCCB With Overload Protection Circuit Breaker


CE PA66 4P 63a Residual Current Operated Circuit Breaker 0




CE PA66 4P 63a Residual Current Operated Circuit Breaker 1

IEC/EN61009 Standard 63a RCBO RCCB With Overload Protection Circuit Breaker

5. Our Services

(1) Warranty ( 24 months warranty )

1. The warranty starts from the delivery date from our factory;

2. During the warranty, any defective product will get repaired or replaced for free ;

3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.



(2) Lead Time

1. Sample orders will be delivered from our factory within 7 working days.

2. General orders will be delivered from our factory within 7-15 working days.

3. Bulk orders will be delivered from our factory within 25 working days at most



(3) Shippment

1. By EMS, DHL, FedEx, TNT, UPS or other express.

2. By our forwarding agent (by air or by sea).

3. By your own forwarding agent.

4. By domestic forwarding agents to any city in China
