NBSM7 Series generator Industrial Type Circuit Breaker MCB AC 1P 100A 230/400V

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CE,CB,CCC
Model Number: NBSM7
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400,000pcs per month
Detail Information
Type: Industrial Pole: 1P
Color: Gray Rated Frequency: 50/60Hz
Rated Voltage: 230/400V Breaking Capacity: 6kA
Protection Degree: IP20 Installation: Din Rail
Standard: EN/IEC60947-2 Type Of Trip: Thermal/magnetic Release
Protection: Overload And Short Circuit Mounting: Surface Mounting
High Light:

thermal magnetic circuit breaker

,

thermal breaker switch


Product Description

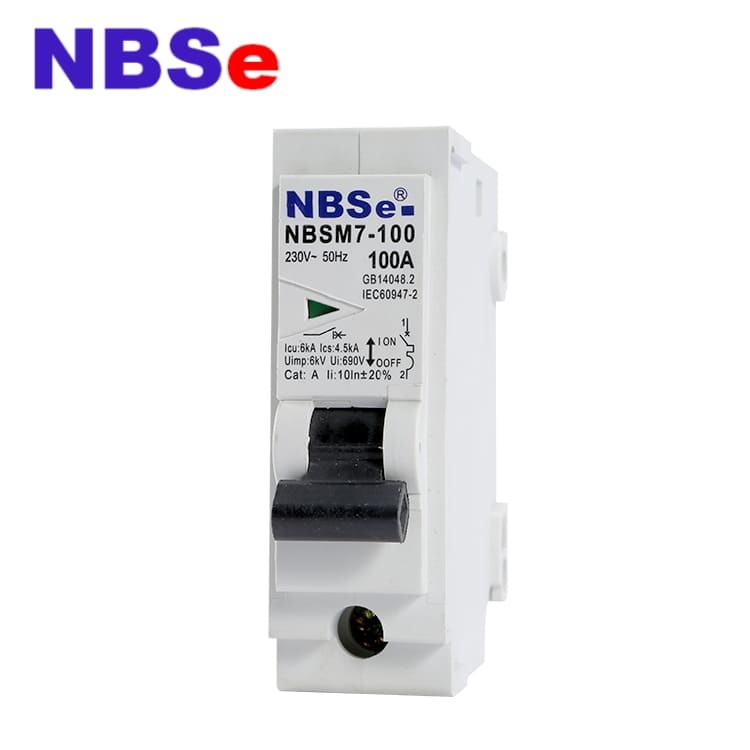

NBSM7 Series generator Industrial Type Circuit Breaker MCB AC 1P 100A 230/400V



Description:



The NBSM7 Industrial breaker is our new design with patent, characterized by compact design, light weight, elegant appearance, high breaking capacity, swift releasing, long service life, Different handle color for different rated current, with contactor condition indicator.



General:


NBSM7 Series motor protection circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to 230/400V

It's a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor.

It can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage.

The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.



Applications:



Technical Data
♦ Standard:Confirming to EN / IEC60947-2
♦ Breaking capacity:6kA
♦ Protection:Against overload and short circuit
♦ Rated current In:16,25,32,40,50,63,80,100,125A
♦ Rated voltage:
◊ 1pole 230/400V AC 50/60Hz
◊ Rated insulation voltage Ui: 500V
◊ Rated impulse withstand voltage Uimp: 6000V
◊ Energy limiting class: 3
♦ Ambient temperature:-5°C to +40°C pursuant to EN / IEC60947-2
♦ Characteristic:
◊ Thermal operating limit: (1.13-1.45) x In
◊ Magnetic operating: D: (10-20) x In
♦ Number of poles:1P,1P+N,2P,3P,3P+N and 4P
♦ Type of trip:Thermal / magnetic release
♦ Type of terminal:Lug type and Pin type
♦ Terminal capacity:
◊ 16mm² flexible or 25mm² rigid up to 25A ratings
◊ 25mm² flexible or 35mm² rigid for 32A to 80A ratings
◊ 35mm² flexible or 45mm² rigid for 100A to 125A ratings
♦ Protection degree:IP20
♦ Installation:DIN rail
♦ Width:18mm per pole



5. Our Services

(1) Warranty ( 24 months warranty )

1. The warranty starts from the delivery date from our factory;

2. During the warranty, any defective product will get repaired or replaced for free ;

3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.



(2) Lead Time

1. Sample orders will be delivered from our factory within 7 working days.

2. General orders will be delivered from our factory within 7-15 working days.

3. Bulk orders will be delivered from our factory within 25 working days at most



(3) Shippment

1. By EMS, DHL, FedEx, TNT, UPS or other express.

2. By our forwarding agent (by air or by sea).

3. By your own forwarding agent.

4. By domestic forwarding agents to any city in China
